一、Features 主要特点
High quality stainless steel material
Low height,all sealed
Apply to small space.
In accordance with the DIN standard EN 60529, corrosion prevention
优质不锈钢材质
高度低，体积小，全密封
适用于空间有限的场合使用
按照 DIN EN 60529 标准, 防锈蚀
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg、200kg、300kg、500kg、1t、2t
三、Specification 技术参数
|
Rated Output |
额定输出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.5% of rated output |
|
Nonlinearity |
非线性 |
±0.5% of rated output |
|
Repeatability |
重复性 |
±0.5% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.05% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

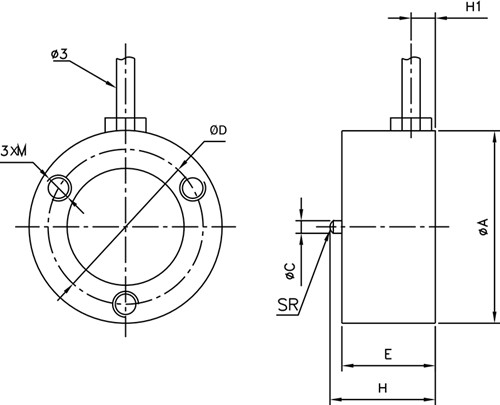

四、Dimensions 尺寸
|
量程 |
ΦA |
ΦC |
ΦD |
H |
E |
M |
H1 |
SR |
|
10-200kg |
20 |
2.5 |
15.5 |
12 |
10 |
M3 |
3.5 |
6 |
|
300-1000kg |
26 |
5 |
18.5 |
15 |
11.5 |
M4 |
3.5 |
6 |
|
2000kg |
30 |
6 |
20 |
18 |
14 |
M4 |
3.5 |
15 |
