Product categories称重传感器_测力传感器
一、Features 主要特点
High quality stainless steel material
Fast dynamic response, plane installation, plane force
It has overload protection function, and it is mostly used to install small force value detection field.
优质不锈钢材质
动态响应快，平面安装，平面受力
具有过载保护功能多用于安装空间小的力值检测领域
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg、150kg、200kg、300kg、500kg、1000kg
三、Specification 技术参数
|
Rated Output |
额定输出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.1% of rated output |
|
Nonlinearity |
非线性 |
±0.1% of rated output |
|
Repeatability |
重复性 |
±0.1% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.05% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

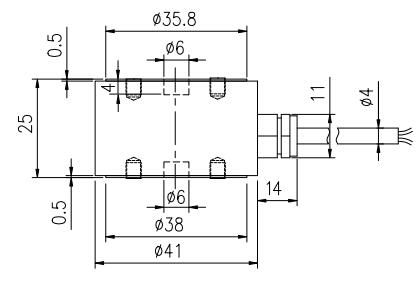

四、Dimensions 尺寸
