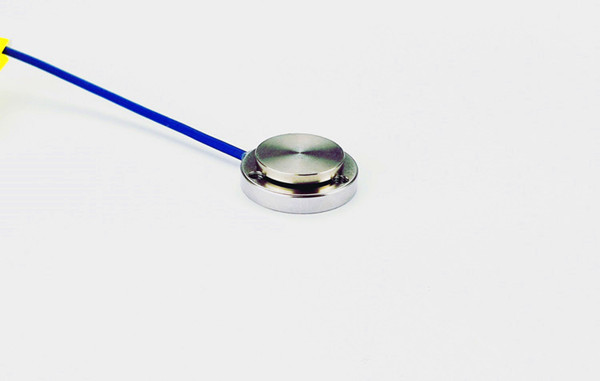

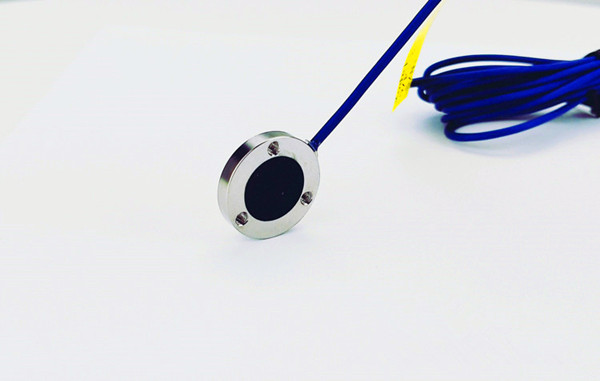

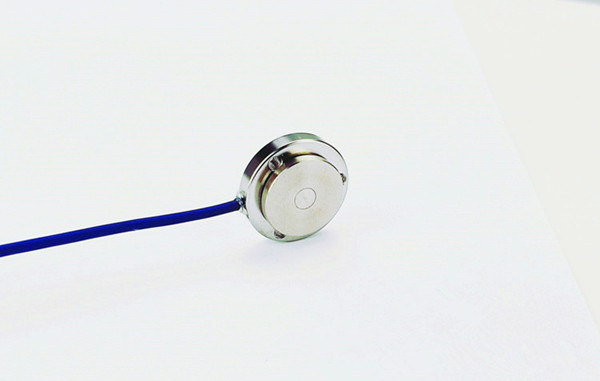

一、Features 主要特点
High quality stainless steel material
Small and easy to install
It is mainly used in the field of force value detection with small installation space, such as key touch tester, robot hand grip, press mounting machine, etc
优质不锈钢材质
外形小巧 便于安装
主要应用于按键手感度测试仪、机器人手抓力、压装机等安装空间小的力值检测领域
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg
三、Specification 技术参数
|
Rated Output |
额定输出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.5% of rated output |
|
Nonlinearity |
非线性 |
±0.5% of rated output |
|
Repeatability |
重复性 |
±0.5% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.05% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

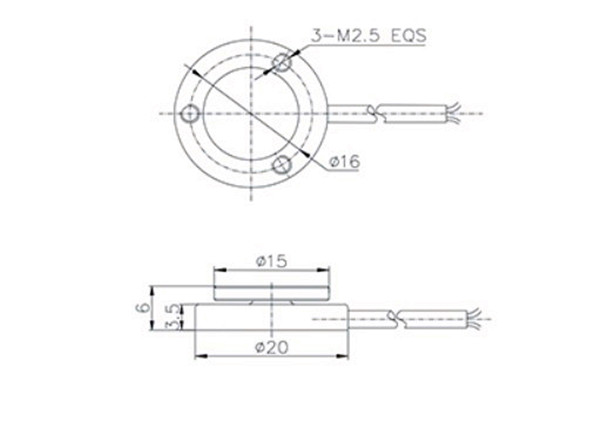

四、Dimensions 尺寸
