Product categories称重传感器_测力传感器
一、Features 主要特点
Pull pressure sensorl
Sensor elastic body made of alloysteel or stainless steel
Adhesive sealed, surface plating
Waterproof, anti-corrosion,
protection grade reaches IP66.
拉压力传感器
传感器弹性体采用合金钢或者不锈钢材质
胶密封处理 ，表面镀镍
防水，防腐蚀，防护等级达到 IP66
二、Capacities 量程
100kg、200kg、300kg、500kg、700kg、1t、2t、3t、5t、10t 、15t、20t
三、Specification 技术参数
Rated Output
额定输出
2.0mV/V ±0.1%
Zero Balance
零点平衡
±1% of rated output
Creep after 30 minutes
蠕变
±0.05% of rated output
Nonlinearity
非线性
±0.05% of rated output
Hysteresis
滞后
±0.05% of rated output
Repeatability
重复性
±0.05% of rated output
Temp. effect on output
灵敏度温漂
≤0.02% of applied output/ºC
Temp. effect on zero
零点温漂
≤0.02% of applied output/ºC
Safe Temp. Range
可用温度范围
-10ºC to + 70ºC
Temp. Compensated
温度补偿范围
-10ºC to + 40ºC
Safe Overload
安全载荷
150%
Input Impedance
输入阻抗
387 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
较大激励电压
15V DC/AC

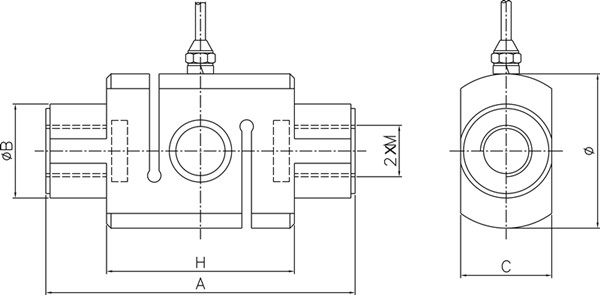

四、Dimensions 尺寸
|
量程 |
A |
H |
ΦB |
Φ |
M |
C |
|
0.1-0.5t |
88 |
58 |
28 |
44 |
16×1.5 |
26 |
|
0.7t |
88 |
58 |
32 |
44 |
16×1.5 |
30 |
|
1-5t |
120 |
68 |
51 |
63 |
22 |
48 |
|
7-15t |
138 |
94 |
60 |
76 |
30 |
56 |
|
20t |
156 |
108 |
68.5 |
88 |
36×3 |
76 |
