NOS-X602 悬臂梁称重传感器

作者：来源：时间：2015-09-16 16:40 :45

一、Features 主要特点

Single ended shear beam load cell
Senior alloy steel
Protected against corrosion by nickelplated treatment
Suitable for floor scales, blending & mixing systems, belt scales and batching systems, etc,

悬臂梁式
优质合金钢材质
表层镀镍防腐处理
适用于平台秤、搅拌站、皮带秤和配料秤等

二、Capacities 量程

500kg、1t、2t、3t、5t、10t、20t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

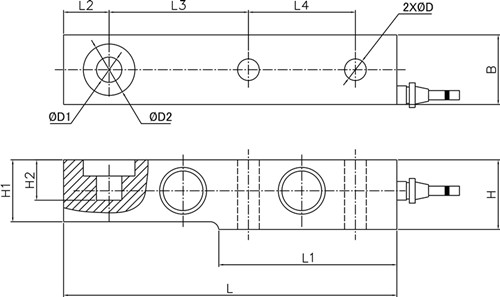

四、Dimensions 尺寸

量程	L	L1	L2	L3	L4	D	D1	D2	H	H1	H2	B
0.5-3t	203	95	22	98	64	13	16	32	43	37	30	37
5t	235	110	22	124	66	21	22	38	52	48	30	48
10t	279	133	32	140	82	28	32	48	67	60	20	60
20t	318	153	38	159	89	34	38	54	82	70	24	70
