NOS-Z206 法兰柱式称重传感器

作者：来源：时间：2015-11-12 11:46 :32

一、Features 主要特点

This product adopts alloy steel or stainless steel manufacturing.
Bidirectional flange connection, a built-in lateral force compensation, can resist high impact.
The product is suitable for truck scale, hopper scale, static mixing station

本产品采用合金钢或不锈钢材质制造。
双向法兰连接，内置侧向力补偿，可抵御高冲击。
该产品适用于汽车衡、静态料斗秤、搅拌站。

二、Capacities 量程

5t、10t、20t、30t、40t、50t、80t、100t、150t、 200t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.05% of rated output
Nonlinearity	非线性	±0.3% of rated output
Repeatability	重复性	±0.3% of rated output
Temp. effect on output	灵敏度温漂	≤0.3% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

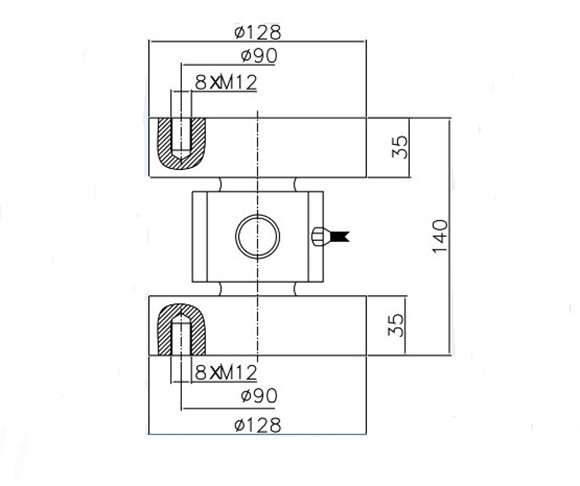

四、 Dimensions 尺寸
