Product categories称重传感器_测力传感器
一 Features 主要特点
Alloy steel material, cylindrical structure
Wide range, strong anti overload ability
The measuring equipment is suitable for the large tonnage of medicine and chemical industry, Gui Daoheng, storage scale, material tank and so on.
合金钢材质、圆柱式结构
量程范围广、抗过载能力强
适用于医药化工、轨道衡、仓储秤、料罐等大吨位的测量设备
二、Capacities 量程
200kg、300kg、500kg、700Kg、1t、3t、5t、7t、10t~200t
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.05% of rated output |
|
Repeatability |
重复性 |
±0.05% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.03% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.03% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

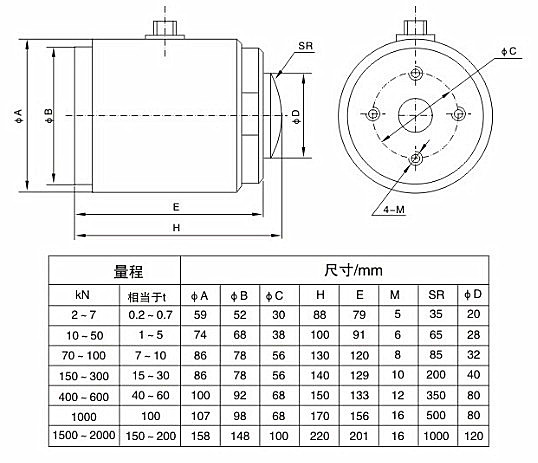

四、Dimensions 尺寸
