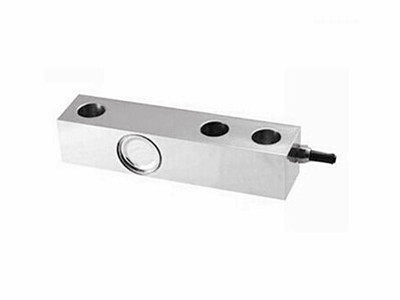

NOS-X604 悬臂梁称重传感器

作者：来源：时间：2015-09-16 17:40 :10

一、Features 主要特点

Single ended shear beam load cell
Senior alloy steel
Protected against corrosion by nickelplated treatment
Widely used in electronic platform scale, truck scale, platform scale, weighing and force measuring device,

悬臂梁式
优质合金钢材质
表层镀镍防腐处理
广泛应用于电子台秤、汽车衡、地磅秤等各种称重测力设备

二、Capacities 量程

500kg、1t、2t、2.5t、5t、10t / 1.5--4klb、5--15klb

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

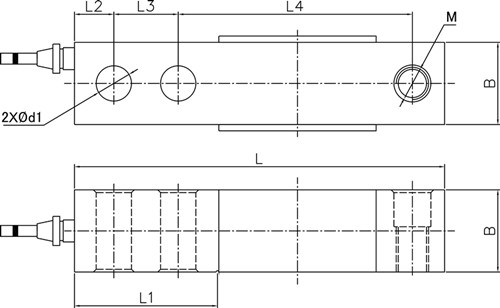

四、Dimensions 尺寸

量程	L	L1	L2	L3	L4	d	B	M
0.5-2t 1.5-4klb	130	56.5	15.8	25.4	76.2	13.5	31.8	M16×2
2.5-5t 5-10klb	171.5	77.2	19.1	38.1	95.3	20	38.1	M20×2.5
10t 20klb	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24×2
