Product categories称重传感器_测力传感器
一、Features 主要特点
This product is made of stainless steel material manufacturing.
Cylindrical hollow structure design, built-in overload protection structure.
The product is suitable for hydraulic equipment, polishing equipment, such as measuring equipment.
测力传感器采用不锈钢材质制造。
圆柱式中空结构设计，内置过载保护结构
该产品适用于液压设备，抛光设备等测力设备
二、Capacities 量程
5kg、10kg、20kg、30kg、50kg、100kg、200kg、300kg、500kg、1t、2t
三、Specification 技术参数(测力传感器)
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.3% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.05% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

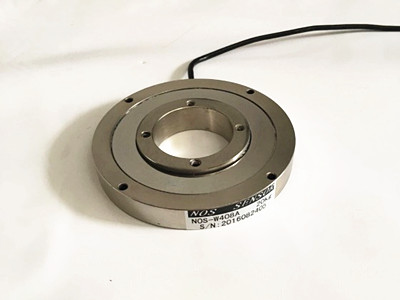

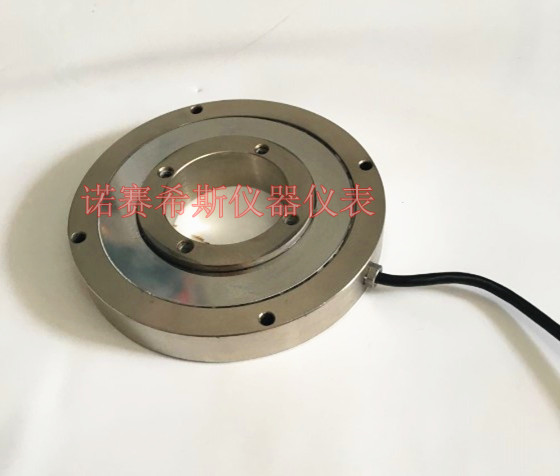

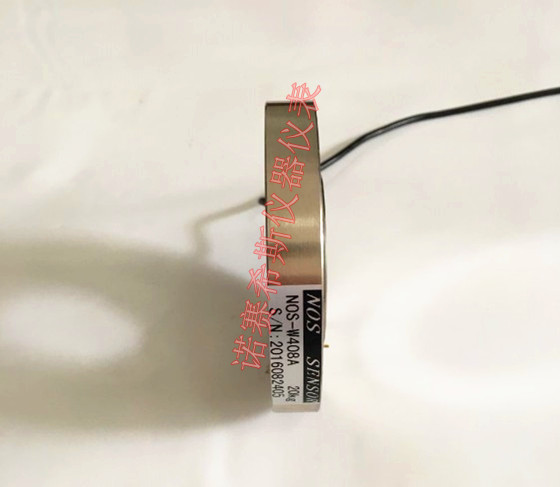

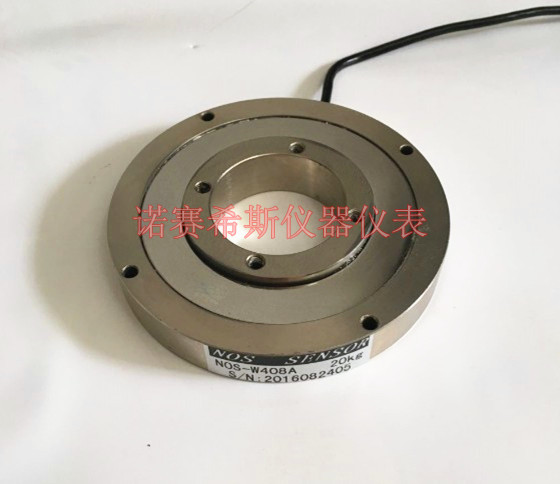

四、实物图片

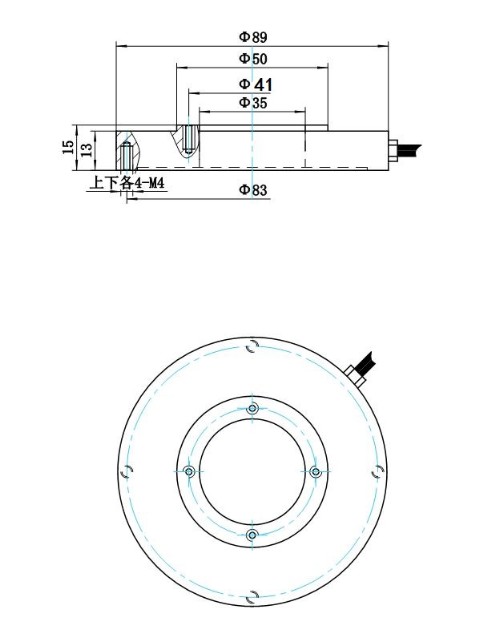

五、测力传感器Dimensions 尺寸
