NOS-W408 微型称重传感器

作者：来源：时间：2015-10-20 10:26 :16

一、Features 主要特点

This product is made of stainless steel material manufacturing.
Fully sealed, waterproof, anti-corrosion, small size low height.
The product is suitable for space limited occasions and force measuring.

本产品采用不锈钢材质制造。
全密封处理，防水，防腐蚀，体积小高度低。
该产品适用于空间有限的场合测力使用。

二、Capacities 量程

5kg、10kg、20kg、30kg、50kg、100kg、200kg、300kg、500kg、1t、2t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.05% of rated output
Nonlinearity	非线性	±0.05% of rated output
Repeatability	重复性	±0.05% of rated output
Temp. effect on output	灵敏度温漂	≤0.05% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.05% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	5V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

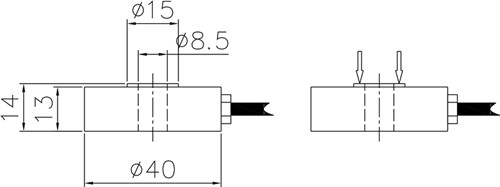

四、Dimensions 尺寸
