NOS-P506 桥式称重传感器

作者：来源：时间：2015-08-17 11:46 :07

一、Features 主要特点

Senior alloy steel
The accessories of combination to automatic reset and adjustment center,contains strong side force resistance of anti-bias,easy to install.
Apply to car weighter,orbit weighter,metering equipment

优质合金钢材质
组合压头可实现自动复位和调心，抗偏载能力强，安装方便
适用于轨道衡、汽车衡以及各类电子衡器

二、Capacities 量程

10t 、20t、25t、30t、40t、50t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.02% of rated output
Nonlinearity	非线性	±0.02% of rated output
Hysteresis	滞后	±0.02% of rated output
Repeatability	重复性	±0.02% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.002% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

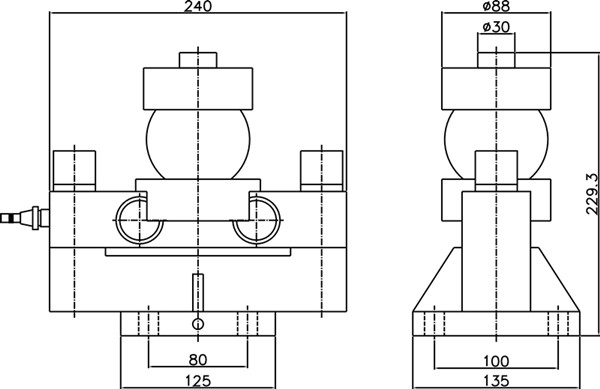

四、Dimensions 尺寸
