一、Features 主要特点
Double flange connection
Can withstand high impact
Upper and lower plane structure with lateral force compensation
The structure is strong, high dynamic load capacity
双向法兰连接
可抵御高冲击
上下平面结构 内置侧向力补偿
结构结实，高动态负载能力
二、Capacities 量程
50kg、100kg、200kg、300kg、400kg、500kg、700kg、1000kg、2000kg
三、Specification 技术参数
Rated Output
额定输出
2.0mV/V ±0.1%
Zero Balance
零点平衡
±1% of rated output
Creep after 30 minutes
蠕变
±0.3% of rated output
Nonlinearity
非线性
±0.3% of rated output
Repeatability
重复性
±0.3% of rated output
Temp. effect on output
灵敏度温漂
≤0.02% of applied output/ºC
Temp. effect on zero
零点温漂
≤0.02% of applied output/ºC
Safe Temp. Range
可用温度范围
-10ºC to + 70ºC
Temp. Compensated
温度补偿范围
-10ºC to + 40ºC
Safe Overload
安全载荷
150%
Input Impedance
输入阻抗
387 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
较大激励电压
15V DC/AC

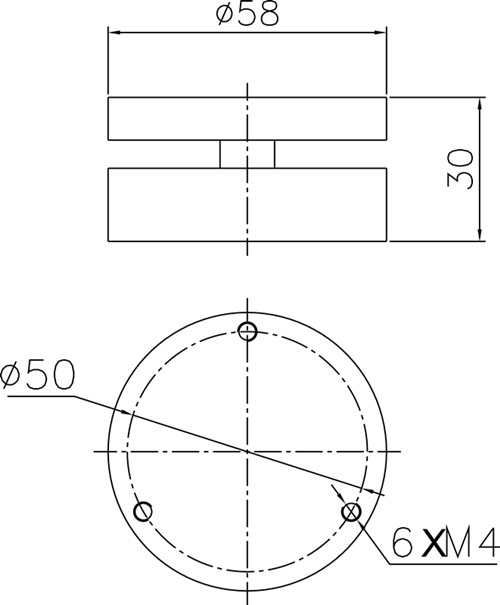

四、Dimensions 尺寸
