NOS-X601 悬臂梁称重传感器

作者：来源：时间：2015-09-16 16:27 :11

一、Features 主要特点

Single ended shear beam load cell
Senior alloy steel
Protected against corrosion by nickelplated treatment
Suitable for floor scales, blending & mixing systems, belt scales and batching systems, etc,

悬臂梁式
优质合金钢材质
表层镀镍防腐处理
适用于平台秤、搅拌站、皮带秤和配料秤等

二、Capacities 量程

500kg、1t、2t、2.5t、3t、5t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.02% of rated output
Nonlinearity	非线性	±0.02% of rated output
Repeatability	重复性	±0.02% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

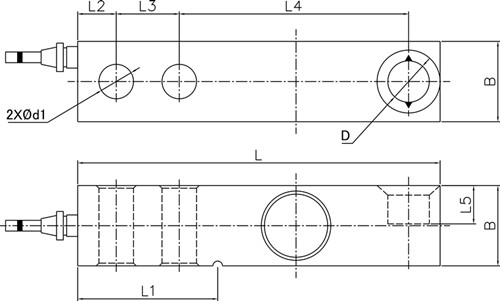

四、Dimensions 尺寸

量程	L	L1	L2	L3	L4	L5	B	D	d
0.5-2	130		15.8	25.4	76.2	15	31.8	18	13.5
2.5-5	171.5	77.2	19.1	38.1	95.3	20.5	38.1	25	20
