一、Features 主要特点
S-Type load cell
Senior aluminum
Easy to install, stabile & reliable
Suitable for tension measurements, batching systems, industrial scales and package systems, etc
S型传感器
优质合金钢材质
安装简便、快捷，稳定可靠
适用于材料试验机、配料秤、机电结合称和包装秤等
二、Capacities 量程
20kg、30kg、50kg、100kg、200kg、300kg、500kg、1t、2t、3t、4t、5t
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.02% of rated output |
|
Nonlinearity |
非线性 |
±0.02% of rated output |
|
Hysteresis |
滞后 |
±0.02% of rated output |
|
Repeatability |
重复性 |
±0.02% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.02% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.02% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

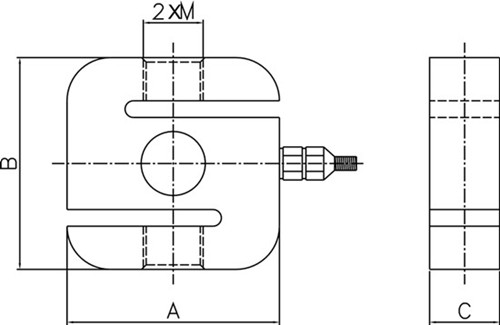

四、Dimensions 尺寸
|
量程（kg） |
A |
B |
C |
M |
|
20-100 |
70 |
64 |
12 |
M8 |
|
200-500 |
70 |
64 |
20 |
M12 |
|
1000 |
70 |
64 |
25 |
M12 |
|
2000-5000 |
90 |
90 |
32 |
M20 |
