NOS-W406B 微型称重传感器

作者：来源：时间：2018-05-22 19:00 :06

一、Features 主要特点

High quality stainless steel material
Sturdy, high speed dynamic response
Bottom installation, top convex starting point is force point
Mainly used for key detection, screen pressure equipment calibration and so on.

优质不锈钢材质
坚固耐用、高速动态响应
底面安装，顶部凸起点为受力点
主要用于按键检测，屏幕压力设备测力校准等

二、Capacities 量程

5kg、10kg、20kg、30kg、50kg、100kg、200kg、300kg、500kg、1t、2t

三、Specification 技术参数

Rated Output	额定输出	1.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.5% of rated output
Nonlinearity	非线性	±0.5% of rated output
Repeatability	重复性	±0.5% of rated output
Temp. effect on output	灵敏度温漂	≤0.05% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.05% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

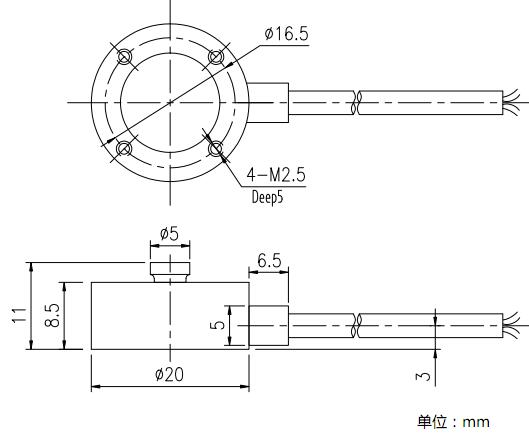

四、Dimensions 尺寸
