NOS-F302 轮辐式称重传感器

作者：来源：时间：2015-11-12 11:53 :24

一、Features 主要特点

This product uses the manufacturing alloy steel or stainless steel.
Glue sealing treatment, nickel plated, suitable for many kinds of working environment, simple structure, convenient installation. The product is suitable for truck scale,
Gui Daoheng, hopper scale and other electronic weighing equipment.

本产品采用合金钢材质或不锈钢制造。
胶密封处理，表面镀镍，适用于多种工作环境，结构简单，安装方便。
该产品适用于汽车衡、轨道衡、料斗秤等其它电子称重设备。

二、Capacities 量程

1t、2t、3t、5t、10t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.05% of rated output
Nonlinearity	非线性	±0.05% of rated output
Repeatability	重复性	±0.05% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

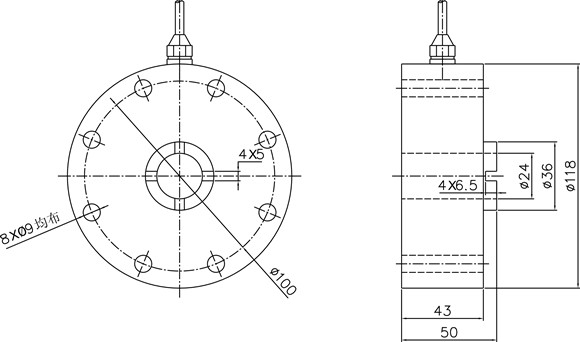

四、 Dimensions 尺寸
