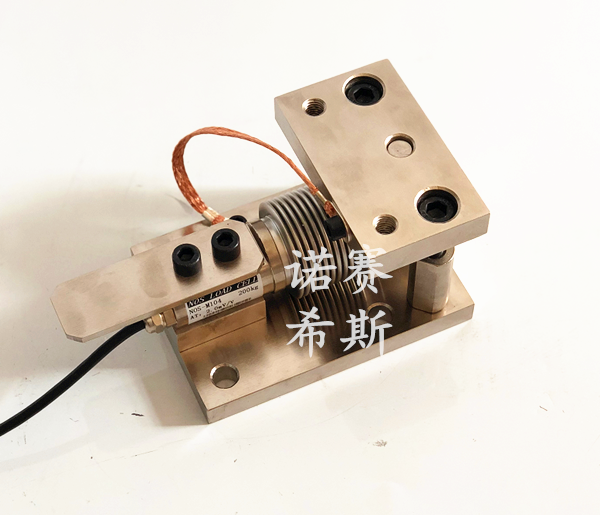

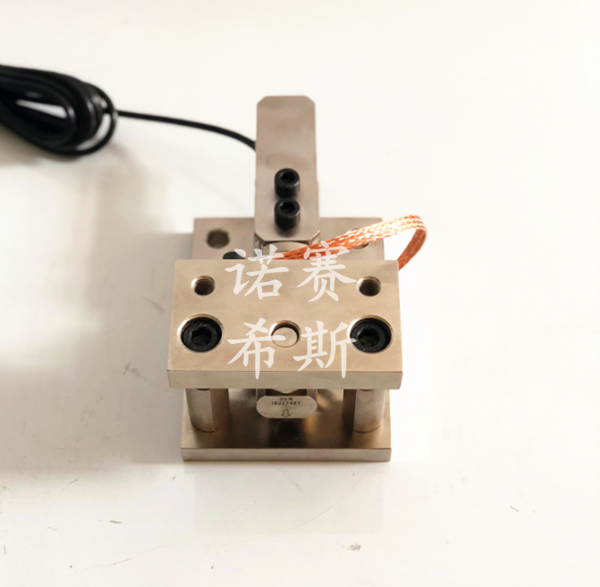

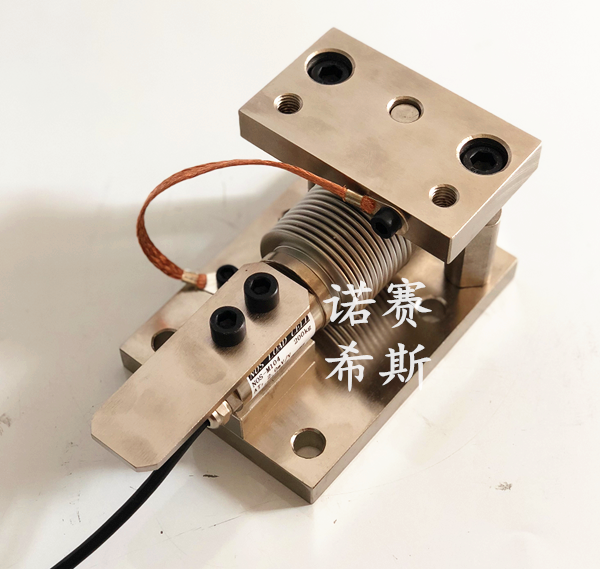

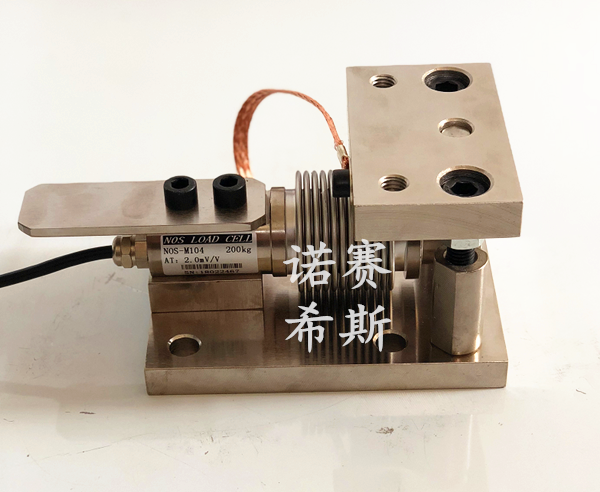

NOS-M104 波纹管称重模块

作者：来源：时间：2015-10-09 17:01 :46

一、Features 主要特点

The sensor adopts alloy steel structure
Can be directly installed on the ground or on the basis of structure
Using cantilever sensor; a support bolt, equipment to prevent capsizing
Suitable for platform scale, mixing station, storage irrigation and batching scale etc.

传感器采用合金钢结构
可直接安装在地上或者基础结构上
使用悬臂梁传感器；支撑螺栓,防止设备倾覆
适用于平台秤、搅拌站、仓储灌和配料秤等

二、Capacities 量程

10kg、20kg、30kg、50kg、100kg、200kg

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.002% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.002% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC
