一、Features 主要特点
Spoke type load celll
Senior aluminum
Easy to install, stabile & reliable
Suitable for testing machine, truck scales and big bin & hopper scales, etc
轮辐式传感器
优质合金钢材质
安装简便、快捷，稳定可靠
适用于试验机、汽车衡和大型料斗秤等
二、Capacities 量程
500kg、1t、2t、3t、5t、10t、20t、30t、50t、70t、100t
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.05% of rated output |
|
Repeatability |
重复性 |
±0.05% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.02% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.02% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

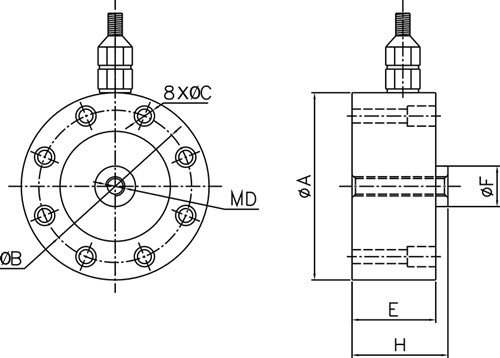

四、Dimensions 尺寸
量程
ΦA
ΦB
ΦC
ΦF
MD
H
E
0.5-7t
105
88.9
6.5
32
M16×1.5
37
34
10-25t
125
101.6
8.5
39
M32×1.5
52
48
30-50t
145
116.8
10.5
50
M40×1.5
58
54
60-100t
205
162
12.5
80
M60×2
85
78
